1825027-5
Manufacturer:
TE Connectivity
Mfr.Part #:
1825027-5
Datasheet:
Description:

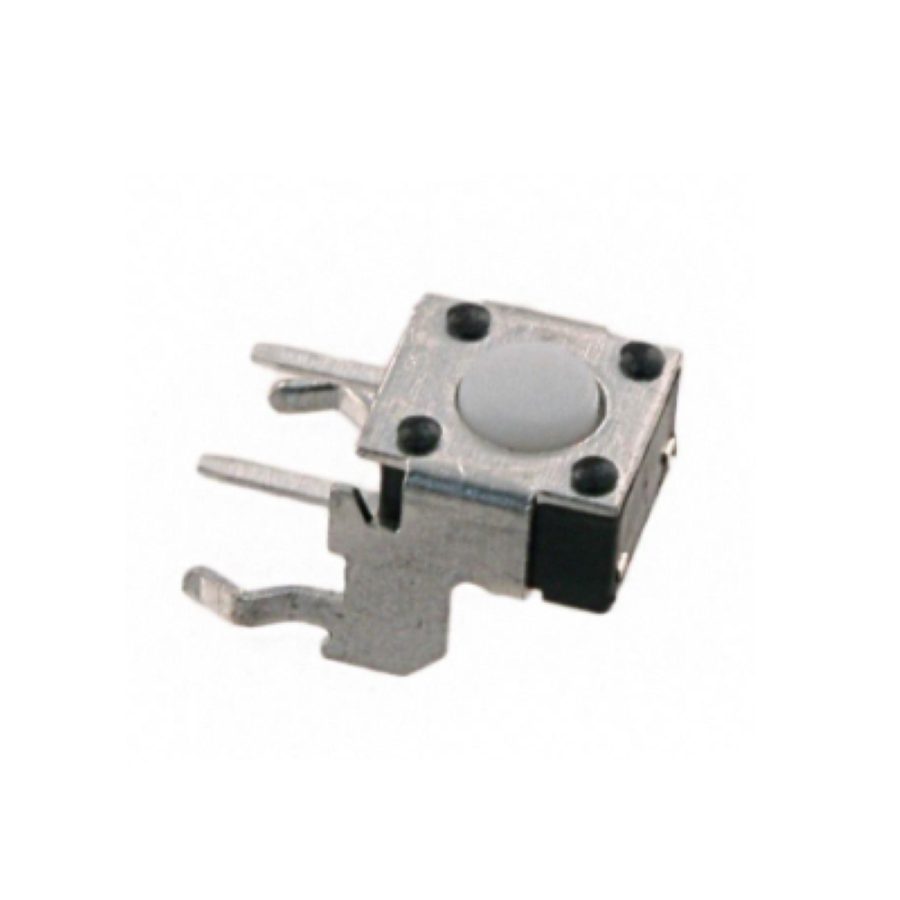

Tactile Switches Through Hole SPST-NO Off-Mom 1.57 N Through Hole
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 7.11 mm |
| Width | 7.11 mm |
| Termination | PC Pins |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Height | 7.31 mm |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Depth | 7.87 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper |
| Type | Switch |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| ELV | Compliant |
| Actuator Length | 1.24 mm |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Housing Material | Nylon |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.57 N |
| Switch Travel | 250 µm |
| Actuator Material | PBT |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Life (Cycles) | 100 kCycles |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Mounting Direction | Through Hole |
Stock: 3490
Distributors
pcbx
pcbxUnit Price$0.13166
Ext.Price$0.13166
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13166 | $0.13166 |
| 10 | $0.10601 | $1.06010 |
| 50 | $0.09429 | $4.71450 |
| 100 | $0.08387 | $8.38700 |
| 500 | $0.07447 | $37.23500 |
| 1000 | $0.06951 | $69.51000 |
